One Component System

High Viscosity Pumps Warm Melt (HVP WM)

The Warm Melt range is based on the Scanrex HVP range of systems for cold pumpable adhesives & sealants. Designed for materials that need additional temperature conditioning to control/reduce viscosity accordingly or to initiate the pre cure chemical cycle with heat.

The systems can be both manual as well as fully automatic. Both are easy to operate and maintain. The Scanrex Warm Melt pump program uses an air driven double acting piston pumps for pumping high viscosity materials directly from 20 to 200L original containers.
The pump are equipped with heating features to heat and maintain materials at temperatures up to 150°C. Main areas of use are Adhesive and Sealing compounds that need to be heated during application, i.e. Polyurethane, Epoxy and Butyl.
The robust design of the pump provides rugged dependability and ease of maintenance.

HEAT ELEMENTS

Location and electric power of elements are decided by needs.
Heat elements are available for:

HVP 200 WM

HVP 400 WM

Connection:

400V, 16 A

400V, 16 A

Follower plate:

500W

2200W or 4000W

Pump body:

500W

1000W

Hoses:

100-300W/meter

100-300W/meter

Valves:

200W

200W

Base heat plate:

1000W-1500W

1000W-1500W

Heating band:

500W-1000W

500W-1000W

Filling station:

200W

200W

Dosing gun:

200-400W

200-400W



MEASUREMENTS FROM:

HVP 200 WM

HVP 400 WM

Weight:

150 KG

550 KG

Lenght/Width/Height:

650/650/1580 mm

1100/1250/3000 mm

Container height:

450 mm

1000 mm



Pneumatic work pressure:

3–6 bar, max 6 bar

Noise level:

<70dB (A)

Capacity:

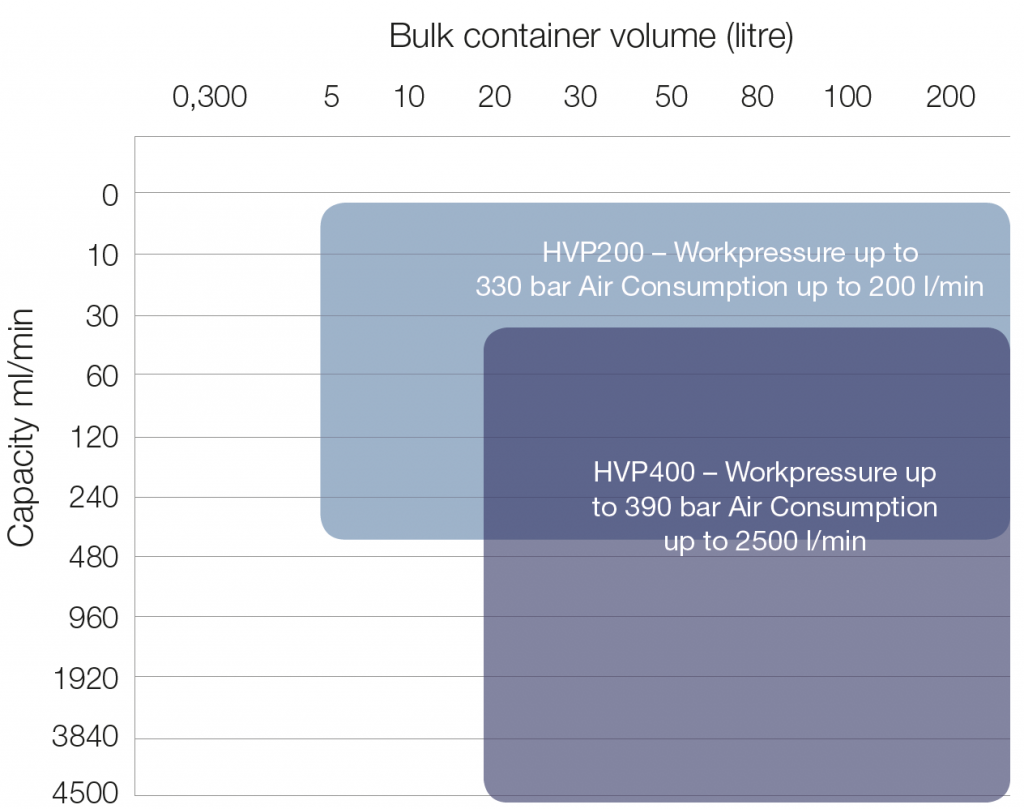

Depending on pressure, material viscosity, hose length and hose diameter, see graph.

High Viscosity Pumps Warm Melt (HVP WM)



STANDARD EQUIPMENT

  • Pump frame with control box

  • Two-hand safety control

  • Air bleed valve for the pump body

  • Air hose connection

  • Material hose connection

  • Shaft sealing PTFE

  • O-rings VITON

  • Follower plate seal VITON

  • Pump shaft: Hard chromed steel

  • Valve seat/cone: Hardened tool steel

  • Follower plate for different material packages: see graph.



ACCESSORIES

  • Material pressure regulator

  • Dispensing guns

  • Dockable doser gun

  • Material outlet block for pressure transmitter

  • High pressure heated material hose in PTFE, custom length and diameter

  • Pneumatic or electric start/stop of pump

  • Foot pedal-pistol handle-solenoid valve

  • Pressure transmitter for the pneumatic system

  • Material level alarm; nearly empty/empty barrel

  • PLC control unit



CONFIGURATION OPTIONS

  • Pump body of acid proof stainless steel

  • Valve seat/cone of hard metal

  • Different materials used for the pressure plate sleeve depending on substance
