For manual and automated dispensing

Dispensing Valves

High precision and proven design combined with easy maintenance gives a reliable solution for the dispensing of the vast majority o todays materials. The valves are fully pneumatic and work as a normally closed system which opens with an air signal. (Typ. 5/2 Sol.Valve) A spring return ensures a fail-safe closing of the valve should the air supply be interrupted.

The valves are used for both manual and automatic dispensing. Combined with a wide range of standard nozzles and customized fastening brackets the valves can be integrated into almost all dispensing applications.

SCANREX dispensing valve 190650300, equipped with valve handle, pneumatic trigger and nozzle for manual dispensing.

Ladda ner produktblad 2028-visual

Dispensing Valves


Download product sheet



Article Size Lenght Weight Inlet



Article

Size

Length

Weight

Inlet

190650300

35×35

117 mm (without nozzle)

0,30 kg

1/4″

190650310

35×35

173 mm (incl. nozzle)

0,35 kg

1/4”

190660300

20×20

135 mm (without nozzle)

0,185 kg

diam. 5 mm

190650200

diam. 28 mm

150 mm (without nozzle)

0,210 kg

1/8”

190650600

50×50

165 mm (without nozzle)

0,800 kg

3/8”

190008020

diam.74 mm

180 mm (without nozzle)

1,200 kg

1/2”

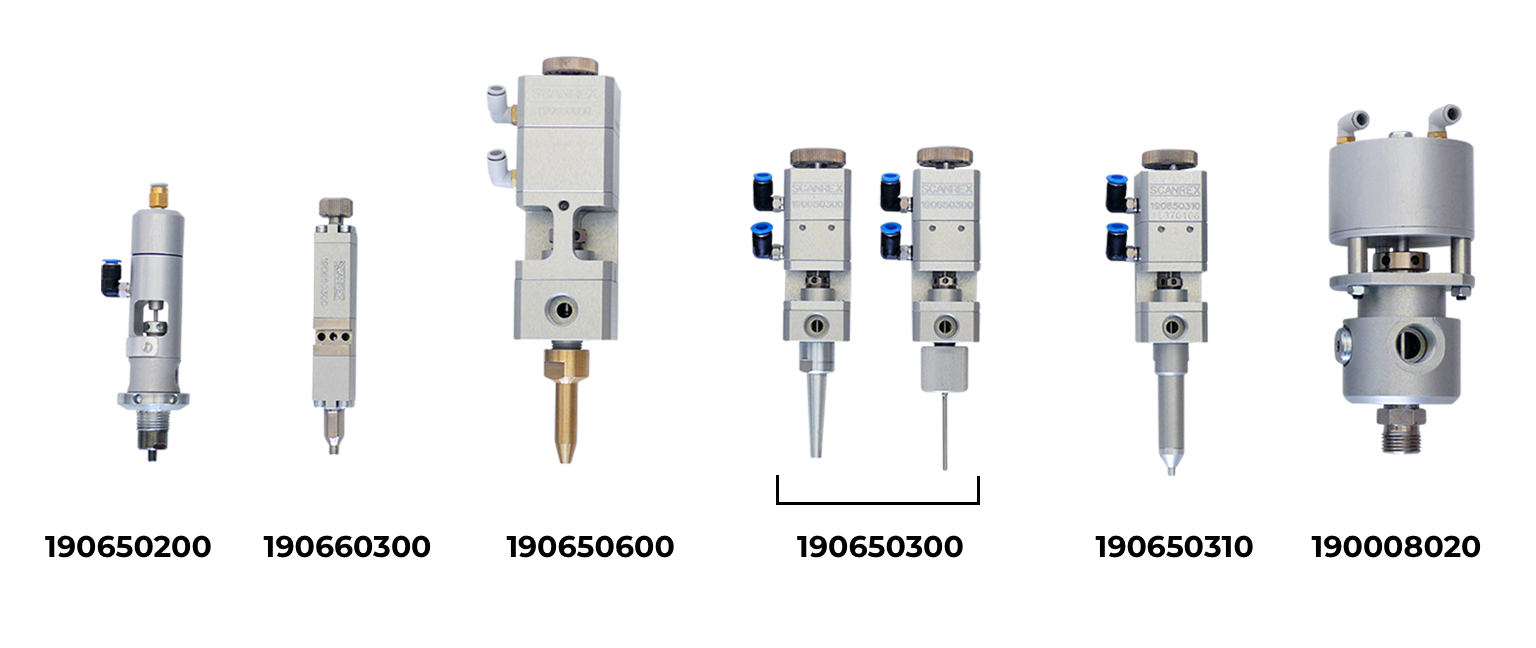

Different models of Scanrex dispensing valves for one component materials

190650300

Dispensing of up to Ø 5mm adhesive bead. Many different types of standard nozzles. Can be mounted on handle, XYZ-table or robot.

190650310

Dispensing of adhesive beads with xyz-table or robot. Extended needle version with nozzle shut off.

190650600

Dispensing of adhesive beads > Ø 5 mm. Can be fitted with heating element. Mounted on handle, XYZ-table or robot.

190660300

Valve for manifold mounting.

190650200

Valve for low viscosity materials. needle close at valve outlet.

190008020

Valve for high flow rates/high viscosity materials. Can be fitted with a heating element.

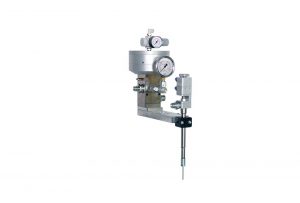

Servo driven material pressure regulator and extended dispensing valve.

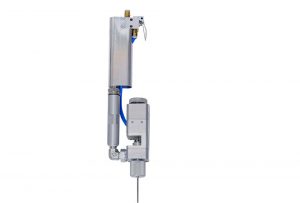

Dispensing valve 190650300 with vertical handle and possibility to hang with balancer. Excellent to combine with a dosing unit for filling.

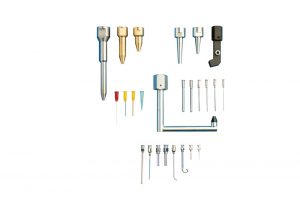

Examples of nozzles, standard and custom made to customer requirements.
Contact Aplicator Group to find the
correct nozzle for your need.
