Two component system

BARKVALL 3200

Barkvall 3200 mixes and dispenses two component adhesives and resins such as polyurethane, epoxy and MS-Polymers. It comes in both a manual and an automatic configuration and is the perfect choice for sandwich panel manufacturing both in individual and continuous production lines.



FUNCTION

Barkvall 3200 is designed for measuring, mixing and dispensing of low, medium and high viscosity two component adhesives and resins. Compatible with a wide spread of materials such as epoxy, polyurethane and silicone, system 3200 is the perfect choice for use in industrial applications such as sandwich panel manufacturing, electronic casting and sealing.

Barkvall 3200 improves the quality of the final product. It simplifies production, the handling of adhesive/curing agents and improves the working environment. The system automatically measures the adhesive components and ensures an accurate and homogeneous mixture. Components are dosed under pressure to eliminate air entrapment and provide perfect mixing ratios.

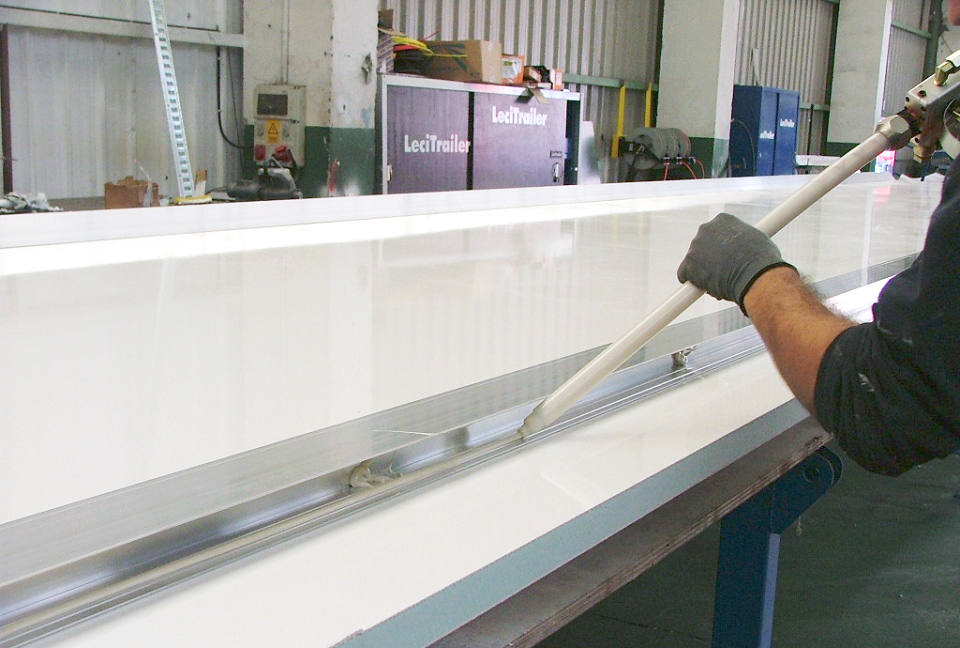

The complete Barkvall 3200 includes hoses, mixer gun with static mixer, nozzle and spreaders with a variety of designs to fit any kind of production. The machine can be assembled with an automatic electronic shot system with a precision handling program if desired. Barkvall 3200 is ideal for precision adhesive dispensing in production of electronic equipment, wide string spreading onto sandwich panel elements and for sealant applications. The metering unit in Barkvall 3200 is comprised of two linked displacement pistons. The mixing ratio between base and hardener is fixed and can be customized with different piston sizes. The system is double acting giving an even and continuous material flow. The mixing gun is drip free and can be supplied with a handle, foot control or photo sensor control to be either hand held or mounted onto any kind of applying system.



Barkvall 3200 SS is a stainless steel configuration that can operate with agressive materials where other machine systems fail. It is designed for measuring, mixing and dispensing two component materials such as carbamide, resorcinol, melamine, resins and PEI adhesives for applications within the wood industry.





All data and characteristics mentioned in this booklet are by way of example only. Aplicator Systems reserve the righ to modify the products without prior notice.

BARKVALL 3200



FEATURES

  • Proven and reliable system.

  • Comes in both manual and automatic configuration.

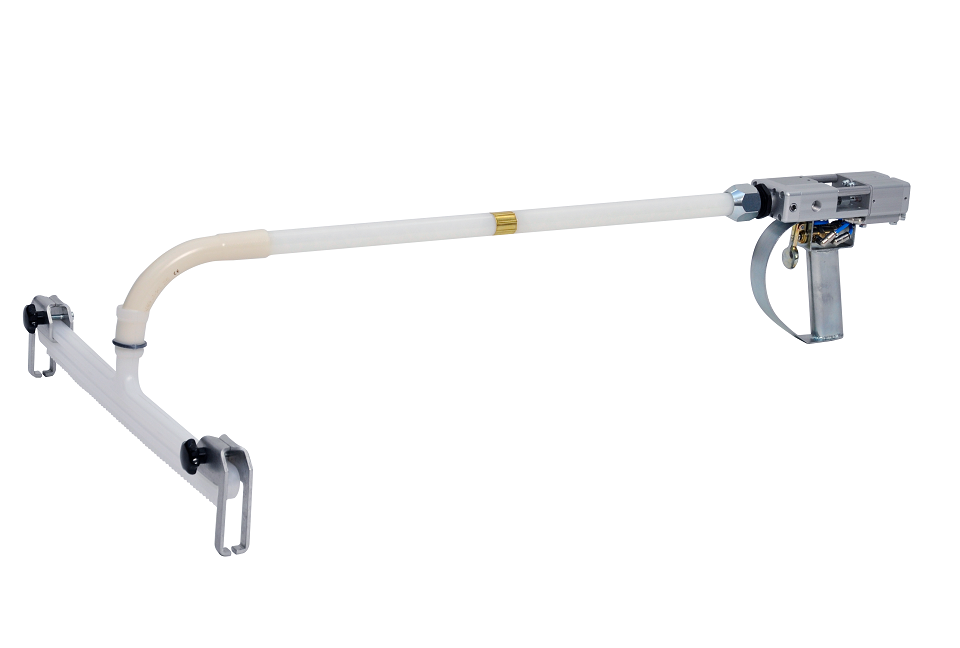

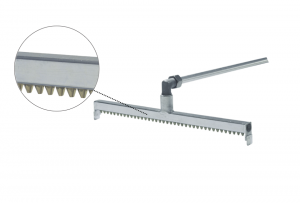

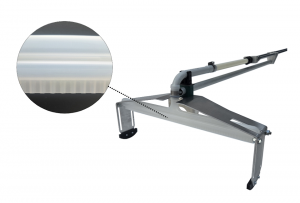

  • Choose reusable or disposable mixer and spreaders of your choice.

  • Can be supplied with a range of options, such as;

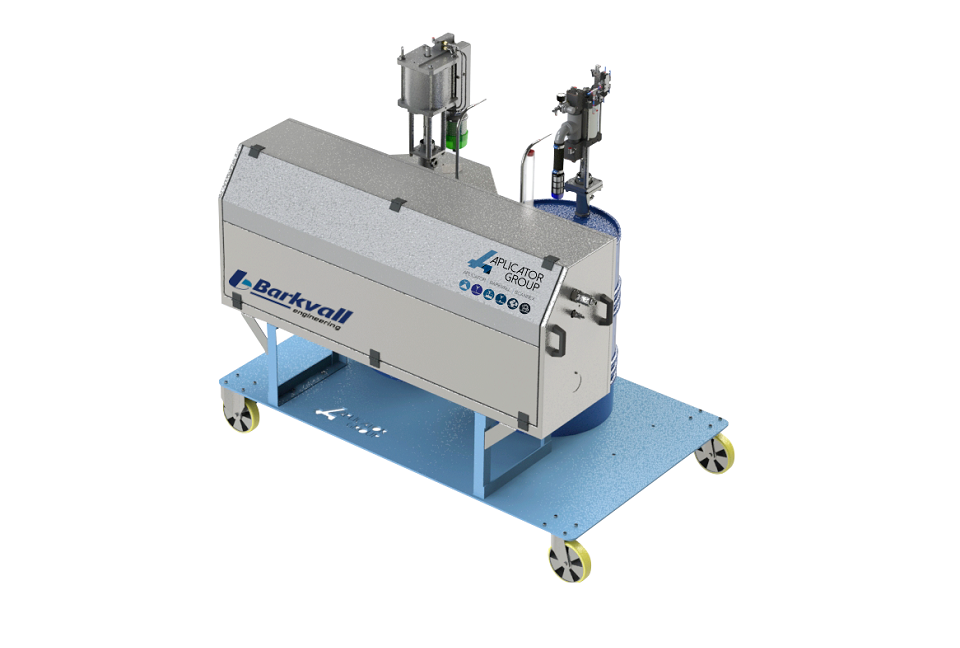

-Wheel chassis

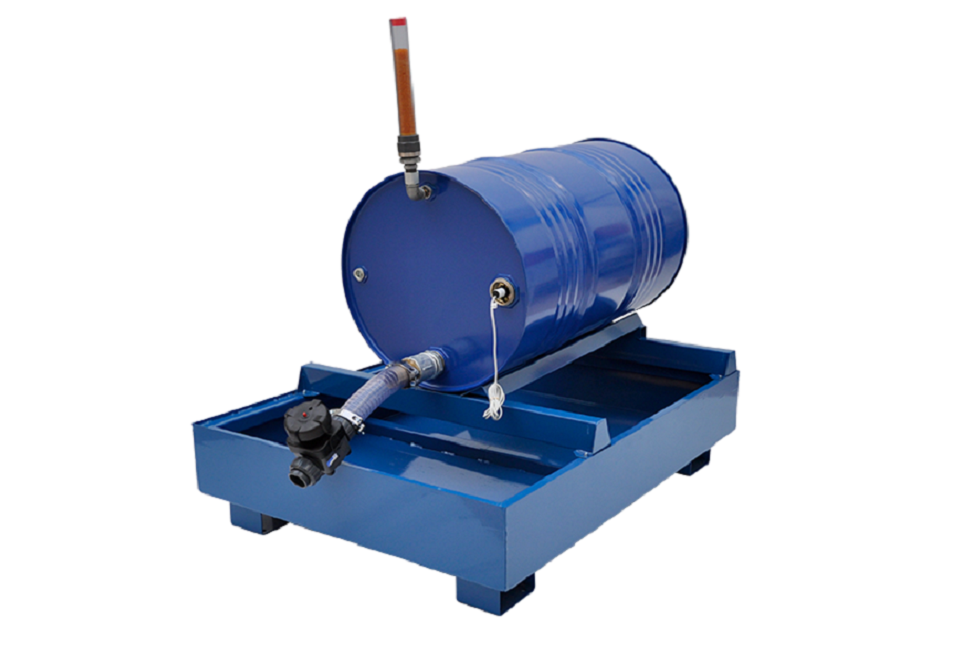

-Accumulator tanks for seamless container switching
-Flushing unit
-PLC for automatic production and overview
-level sensors and flow meters
-agitators



TECHNICAL DATA

Capacity: From single drops up to approx. 20l/min depending on viscosity and mixing ratio.
Required air pressure:  5 bar, 1500l/min
Mixing ratio:  Fixed: 100:100 – 100:4
Mixing accuracy:  +/-  2%
Viscosity range:  1-2 *106 mPas
Electronic dosing system: From 1 gram and up
Material container volume:  25, 200, 1500kg
Machine weight:  Appr 350kg
Dimensions of meter unit:
Length: 180cm
Width: 50cm
Height: 140cm
Pumps:  As per specification depending on capacity needed and viscosity of the adhesive/resin.
