One Component System

HVP200

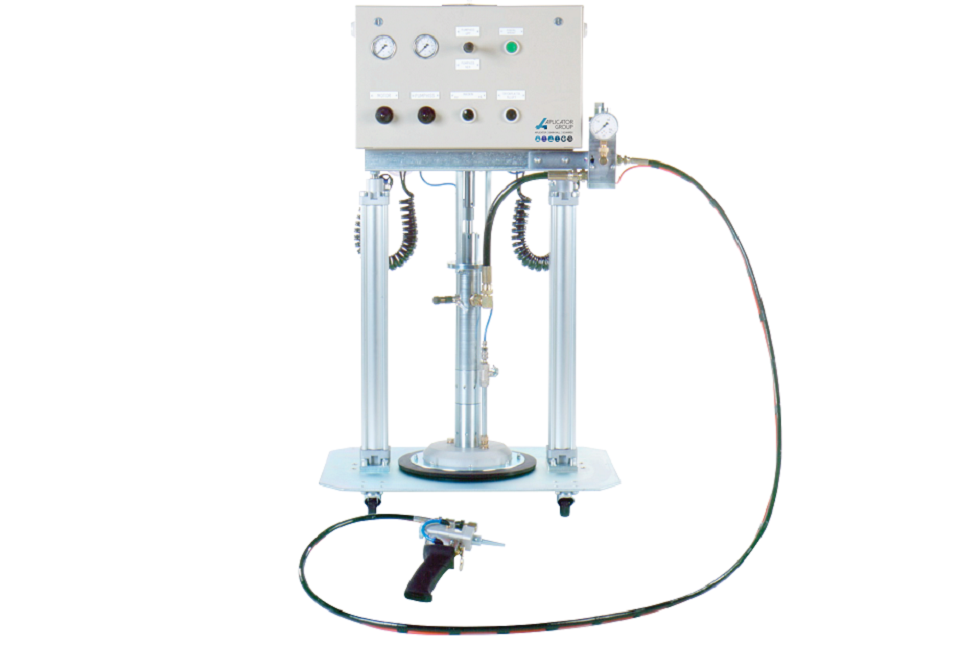

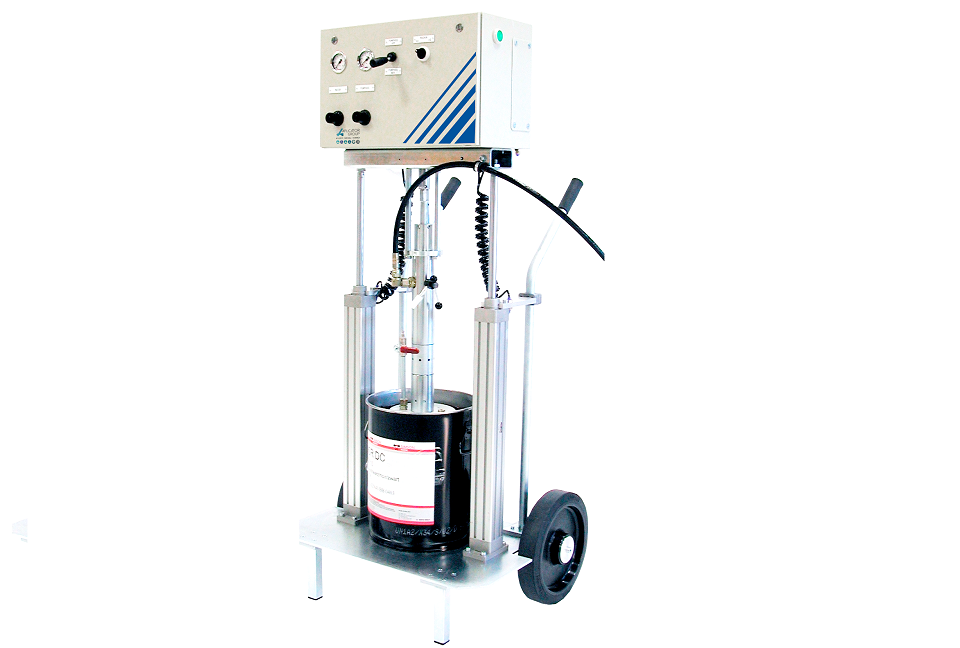

The HVP200 is an air driven double-acting piston pump for pumping, dosing and application of high viscosity material direct from 20 litre delivery container. The machine is used for pumping different kinds of adhesives, sealing compounds and grease.

The HVP 200 is a versatile machine that easily can be adapted for many different dispensing situations; from manual dispensing to automated dispensing stations where the material is dispensed with a robot or actuator tables.



HVP200 35:1

HVP200 55:1

Pressure ratio:

35:1

55:1

Material pressure max:

210Bar

330Bar

Air consumption l/min:
at 6bar and 20 double strokes.

150l/min

200l/min

Air pressure max:

6Bar

6Bar

Capacity:

30 cm³/double stroke

30 cm³/double stroke

Floor space, width x length:

640 x 450mm

640 x 450mm

Height min/max:

1120/1610mm

1120/1610mm

Height material container max:

400mm

400mm

Material container standard:

20 litres

20 litres

Weight standard pump:

approx. 60Kgs

approx. 60Kgs

Noise level:

<70 dB (A)

<70 dB (A)





All data and characteristics mentioned  are by way of example only. Scanrex reserves the right to modify the products without prior notice.

HVP200



STANDARD HVP200

• Pump frame with control box
• Container lifter Two-hand control
• Air bleeding valve for the pump body
• Air hose connection int R 3/8”
• Material hose connection int R 1/2”
• Shaft sealing PTFE
• O-rings VITON
• Sleevet (pressure plate) NEOPREN
• Pump shaft Hard chromed steel
• Ventil seat/cone Hardened tool steel
• Pressure plate for 20-25 litres material container



ACCESSORIES HVP200

• Material pressure regulator
• Material valves
• Material dosers
• Outlet block with manometer
• High pressure material hose PA or PTFE.
• Pneumatic control unit for the material valve:

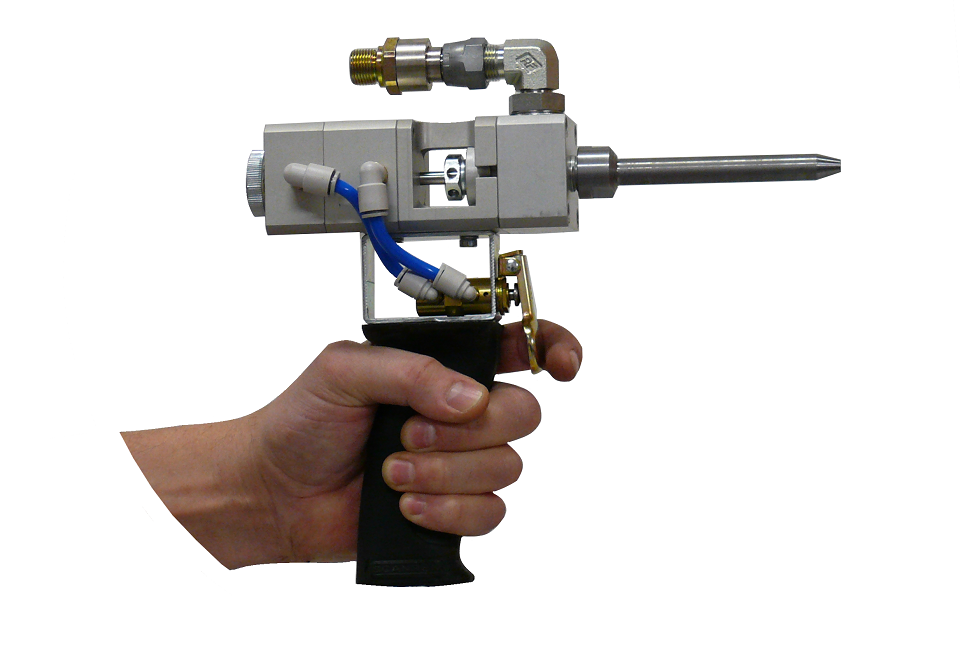

   Foot pedal-pistol handle-solenoid valve
• Pressure transducer on pneumatic
and material system
• Alarm for empty material container
• Programmable PLC unit
